7.3 Declaring a Custom Tag
Library
As you know by now, a JSP page contains a
mixture of JSP elements and template text, in which the
template text can be HTML or XML elements. The JSP container
needs to figure out which is which. It's easy for it to
recognize the standard JSP elements (because they all use the
jsp namespace prefix), but it needs some help to find
which elements represent custom actions. That's where the tag
library declaration comes into play.
Example
7-1 shows a page that uses a custom action from a custom
tag library.
Example 7-1. Custom tag
library declaration (message.jsp) <%@ page contentType="text/html" %>
<%@ taglib prefix="ora" uri="orataglib" %>
<html>
<head>
<title>Messages of the Day</title>
</head>
<body bgcolor="white">
<h1>Messages of the Day</h1>
<h2>Deep Thoughts - by Jack Handey</h2>
<i>
<ora:motd category="thoughts" />
</i>
<h2>Quotes From the Famous and the Unknown</h2>
<i>
<ora:motd category="quotes" />
</i>
</body>
</html>
This page displays messages from the same
collections as the examples in Chapter
6. The second directive in Example
7-1 is a taglib directive, which is used to
declare a custom tag library. Now, let's see what this really
means. In order for the JSP container to use actions from a
tag library, it must be able to do two things: recognize that
an element represents a custom action from a specific library
and find the Java class that implements the custom action
logic.
The first requirement -- figuring out which
library an action belongs to -- is satisfied by the
taglib directive's prefix attribute;
all elements in the page that use the specified prefix belong
to this custom tag library. A custom tag library defines a
default prefix, used in the library's documentation and
possibly by page-authoring tools that insert custom action
elements in a page. You can, however, use any prefix you like
except jsp, jspx, java,
javax, servlet, sun, or
sunw (those are reserved by the JSP specification).
The prefix I use for all custom actions in this book is
ora, short for "O'Reilly & Associates, Inc."
The uri attribute satisfies the second
requirement; finding the class for each custom action. The
attribute contains a string the container uses to locate the
TLD for the library, where it finds the Java class names for
all actions in the library. The value can identify the TLD
file in a number of ways, but if you use a JSP 1.2 container,
there's really just one way that you need to care about: the
default URI for the library. The default URI should be part of
the documentation for the library. It's orataglib for
the custom tag library described in this book.
When the web application is started, the
container scans through the WEB-INF directory structure
for files with .tld extensions
(the mandatory extension for a TLD file) and all JAR files
containing files with .tld
extensions in their META-INF
directory. In other words, the container locates all TLD
files. For each TLD, the container gets the library's default
URI from the TLD and creates a map from the URI to the TLD
that contains it. In your JSP page, you just have to use a
taglib directive with a uri attribute value
that matches the default URI.
For this to work in an environment where
custom tag libraries can come from multiple vendors as well as
from inhouse staff, the default URI
value must be a globally unique string. A common convention is
to use an HTTP URL, such as http://ora.com/jsptags.
This is one way to be reasonably sure that the value is
unique, and it's the choice made for all JSTL tag library
URIs. Note that the URL doesn't have to refer to an existing
web page; it's just an identifier, and the container doesn't
try to access it over the Internet. Others prefer a shorter
string, such as orataglib or
com.ora.jsptags. This works equally well as long as
the strings are unique in the application.
With the URI and the prefix for the library
defined, the container has all it needs to find the class that

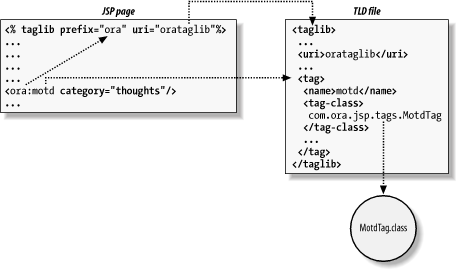

implements the custom action's behavior. As shown in Figure
7-1, when the container finds an element with a prefix
matching a prefix defined by a taglib directive, it
uses the uri attribute value to locate the TLD. In
the TLD, it finds a mapping between the action element name and the class file.
7.3.1 Identifying a Custom Tag
Library in a JSP 1.1 Container
Prior to JSP 1.2, the container didn't locate custom tag
libraries automatically. If you're stuck with a container that
doesn't yet support JSP 1.2, you must tell it exactly where to
find the TLD.
The first approach you can use is to specify
a symbolic name as the uri attribute value, just as
in JSP 1.2. But in addition, you must define the mapping from
the symbolic name to the location of the library in the
deployment descriptor for the application
(WEB-INF/web.xml): <web-app>
...
<taglib>
<taglib-uri>
orataglib
</taglib-uri>
<taglib-location>
/WEB-INF/lib/orataglib_2_0.jar
</taglib-location>
</taglib>
...
</web-app>
The <taglib-uri> element
contains the symbolic name, and the
<taglib-location> element contains the path to
the tag library JAR file or to the TLD file itself in case the
library isn't packaged in a JAR file.
If the uri attribute value doesn't
match a symbolic name defined in the web.xml file, the
container assumes it is a file path: <%@ taglib uri="/WEB-INF/lib/orataglib_2_0.jar" prefix="ora" %>
If the path starts with a slash, it's
interpreted as a context-relative path (the path to the file
from the root of the application installation directory),
otherwise as a path relative to the JSP page. The file can be
either the TLD file itself or a JAR file that includes the TLD
file as META-INF/taglib.tld.
These two approaches work in JSP 1.2
container as well, but there's rarely a reason to use them
because the auto-discovery feature makes life so much easier.
![]()
|
